Set up Azure Functions in the AppHost

This article is the reference for the Aspire Azure Functions Hosting integration. It enumerates the AppHost APIs — with examples for both AppHost.cs and apphost.ts — that you use to model an Azure Functions project resource in your AppHost project.

If you are new to the Azure Functions integration, start with the Get started with the Azure Functions integration guide. For how your Functions code reads the connection information this page sets up, see Azure Functions runtime configuration.

Project constraints

The Aspire Azure Functions integration has the following project constraints for .NET Functions projects:

• You must target .NET 8.0 or later.
• You must use a .NET 9 SDK or later.
• It currently only supports .NET workers with the isolated worker model.
• Requires the following NuGet packages:
  • 📦 Microsoft.Azure.Functions.Worker: Use the FunctionsApplicationBuilder.
  • 📦 Microsoft.Azure.Functions.Worker.Sdk: Adds support for aspire run and aspire deploy.
  • 📦 Microsoft.Azure.Functions.Worker.Extensions.Http.AspNetCore: Adds HTTP trigger-supporting APIs.

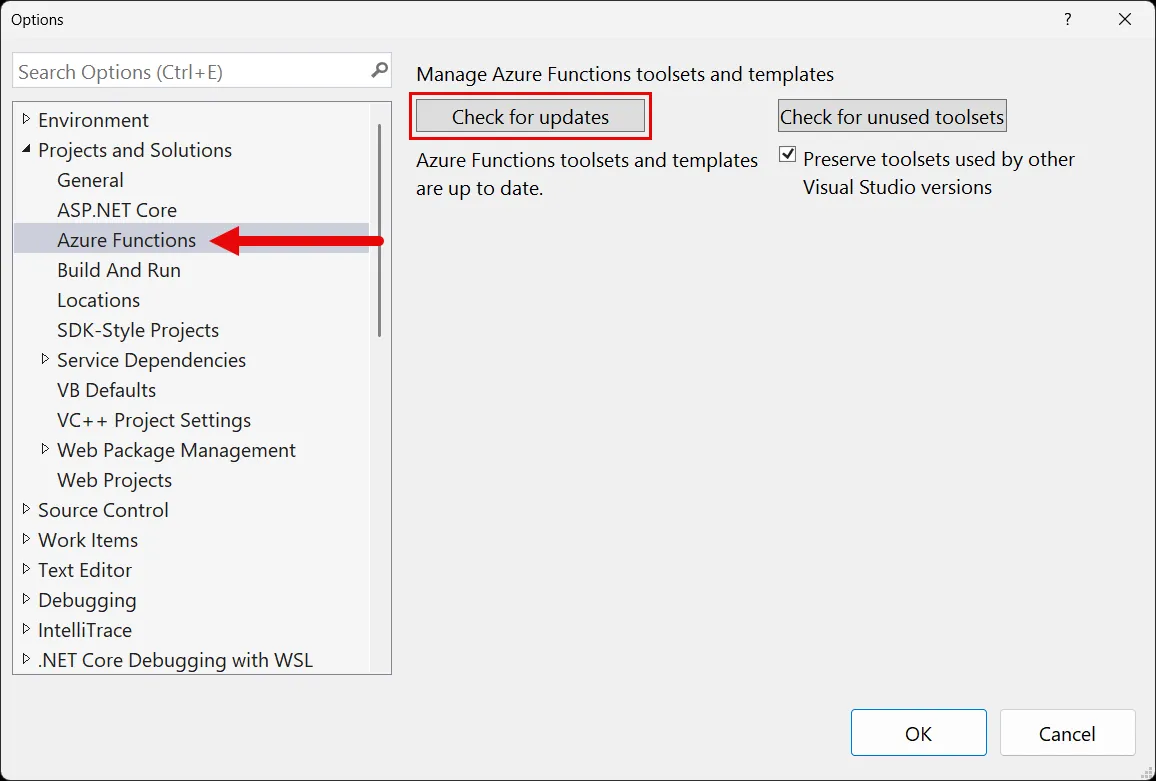

Visual Studio tooling

If you encounter the error “There is no Functions runtime available that matches the version specified in the project” in Visual Studio, check for an update on the Azure Functions tooling. Open the Options dialog, navigate to Projects and Solutions, and then select Azure Functions. Select Check for updates to get the latest version.

Installation

To start building an Aspire app that uses Azure Functions, install the 📦 Aspire.Hosting.Azure.Functions NuGet package:

C#

Terminal

aspire add azure-functions

Learn more about aspire add in the command reference.

Or, choose a manual installation approach:

C# — AppHost.cs

#:package Aspire.Hosting.Azure.Functions@*

XML — AppHost.csproj

<PackageReference Include="Aspire.Hosting.Azure.Functions" Version="*" />

TypeScript

Terminal

aspire add azure-functions

Learn more about aspire add in the command reference.

This updates your aspire.config.json with the Azure Functions hosting integration package:

aspire.config.json

{
  "packages": {
    "Aspire.Hosting.Azure.Functions": "13.3.0"
  }
}

Add Azure Functions resource

The Azure Functions hosting integration models Azure Functions projects as the AzureFunctionsProjectResource type. Call addAzureFunctionsProject on the builder instance to add an Azure Functions project resource to the app model.

There are two ways to add an Azure Functions project in C#, depending on whether the Functions project is referenced by the AppHost project. The TypeScript AppHost always uses the file path approach.

Add a referenced Functions project (C# only)

If the Azure Functions project is referenced in your C# AppHost project, use the generic overload of AddAzureFunctionsProject:

C# — AppHost.cs

var builder = DistributedApplication.CreateBuilder(args);

var functions = builder.AddAzureFunctionsProject<Projects.ExampleFunctions>("functions")
    .WithExternalHttpEndpoints();

builder.AddProject<Projects.ExampleProject>()
    .WithReference(functions)
    .WaitFor(functions);

// After adding all resources, run the app...
builder.Build().Run();

Add a Functions project by file path

If the Azure Functions project is not referenced in your AppHost project (or you are using a TypeScript AppHost), specify the path to the project file:

C#

C# — AppHost.cs

var builder = DistributedApplication.CreateBuilder(args);

var functions = builder.AddAzureFunctionsProject("functions", "../MyFunctions/MyFunctions.csproj")
    .WithExternalHttpEndpoints();

builder.AddProject<Projects.ExampleProject>()
    .WithReference(functions)
    .WaitFor(functions);

// After adding all resources, run the app...
builder.Build().Run();

TypeScript

TypeScript — apphost.ts

import { createBuilder } from './.modules/aspire.js';

const builder = await createBuilder();

const functions = await builder.addAzureFunctionsProject(
    "functions",
    "../MyFunctions/MyFunctions.csproj"
);
await functions.withExternalHttpEndpoints();

await builder.addNodeApp("api", "./api", "index.js")
    .withReference(functions)
    .waitFor(functions);

// After adding all resources, run the app...

1. The path to the Functions project file is relative to the AppHost project directory. If the path is not absolute, it is resolved relative to the AppHost directory.

2. The functions resource can be referenced by other project resources. The WithReference (or withReference) method configures a connection named "functions" in the consuming project.

3. If the Functions project exposes an HTTP trigger and you call WithExternalHttpEndpoints (or withExternalHttpEndpoints), the trigger endpoint is publicly accessible when deployed.

Note

When you reference an Azure Functions resource from the AppHost, Aspire injects connection information for all referenced Azure resources as environment variables into the Functions host. For details on how your function code reads those values, see Azure Functions runtime configuration.

Add Azure Functions resource with host storage

Azure Functions requires an Azure Storage account as host storage for checkpoints, leases, and other internal state. By default, Aspire creates an implicit host storage resource automatically. To use a specific storage account, call WithHostStorage (or withHostStorage) on the Azure Functions resource:

C#

C# — AppHost.cs

var builder = DistributedApplication.CreateBuilder(args);

var storage = builder.AddAzureStorage("storage")
    .RunAsEmulator();

var functions = builder.AddAzureFunctionsProject<Projects.ExampleFunctions>("functions")
    .WithHostStorage(storage);

builder.AddProject<Projects.ExampleProject>()
    .WithReference(functions)
    .WaitFor(functions);

// After adding all resources, run the app...
builder.Build().Run();

TypeScript

TypeScript — apphost.ts

import { createBuilder } from './.modules/aspire.js';

const builder = await createBuilder();

const storage = await builder.addAzureStorage("storage");
await storage.runAsEmulator();

const functions = await builder.addAzureFunctionsProject(
    "functions",
    "../MyFunctions/MyFunctions.csproj"
);
await functions.withHostStorage(storage);

// After adding all resources, run the app...

The preceding code relies on the 📦 Aspire.Hosting.Azure.Storage NuGet package to add an Azure Storage resource running as an emulator. The storage resource is passed to WithHostStorage, setting the host storage to the emulated account.

Note

If you are not using implicit host storage, you must manually assign the StorageAccountContributor role to your resource for deployed instances. The implicit host storage is automatically configured with the following roles:

• StorageBlobDataContributor
• StorageTableDataContributor
• StorageQueueDataContributor
• StorageAccountContributor

For production, register the storage account explicitly and assign a minimal set of roles:

C# — AppHost.cs

var builder = DistributedApplication.CreateBuilder(args);

var storage = builder.AddAzureStorage("storage");

builder.AddAzureFunctionsProject<Projects.ExampleFunctions>("functions")
       .WithHostStorage(storage)
       .WithRoleAssignments(storage, StorageBuiltInRole.StorageBlobDataReader,
                                    StorageBuiltInRole.StorageQueueDataReader);

TypeScript gap

WithRoleAssignments is available in the C# AppHost only. The TypeScript AppHost does not currently expose an equivalent API for scoped role assignments on Azure Functions resources.

Reference resources in Azure Functions

To connect Azure Functions triggers and bindings to other Azure resources, chain WithReference (or withReference) on the Azure Functions project resource:

C#

C# — AppHost.cs

var builder = DistributedApplication.CreateBuilder(args);

var storage = builder.AddAzureStorage("storage").RunAsEmulator();
var blobs = storage.AddBlobs("blobs");

builder.AddAzureFunctionsProject<Projects.ExampleFunctions>("functions")
    .WithHostStorage(storage)
    .WithReference(blobs);

builder.Build().Run();

TypeScript

TypeScript — apphost.ts

import { createBuilder } from './.modules/aspire.js';

const builder = await createBuilder();

const storage = await builder.addAzureStorage("storage");
await storage.runAsEmulator();
const blobs = await storage.addBlobs("blobs");

const functions = await builder.addAzureFunctionsProject(
    "functions",
    "../MyFunctions/MyFunctions.csproj"
);
await functions.withHostStorage(storage);
await functions.withReference(blobs);

// After adding all resources, run the app...

The connection information required to connect to the blobs resource is automatically injected into the Azure Functions project, enabling the project to define a BlobTrigger that uses the blobs resource. For how your function code reads the injected connection information, see Azure Functions runtime configuration.

Add external HTTP endpoints

To make HTTP triggers publicly accessible when deployed, call WithExternalHttpEndpoints (or withExternalHttpEndpoints) on the Azure Functions resource:

C#

C# — AppHost.cs

var builder = DistributedApplication.CreateBuilder(args);

var functions = builder.AddAzureFunctionsProject<Projects.ExampleFunctions>("functions")
    .WithExternalHttpEndpoints();

builder.Build().Run();

TypeScript

TypeScript — apphost.ts

import { createBuilder } from './.modules/aspire.js';

const builder = await createBuilder();

const functions = await builder.addAzureFunctionsProject(
    "functions",
    "../MyFunctions/MyFunctions.csproj"
);
await functions.withExternalHttpEndpoints();

// After adding all resources, run the app...

Durable Task Scheduler integration

Experimental APIs

The Durable Task scheduler and task hub APIs are experimental in this release. They are marked with the [Experimental("ASPIREDURABLETASK001")] attribute and may change before becoming generally available (GA).

To use these APIs without compiler warnings, suppress the ASPIREDURABLETASK001 diagnostic. For suppression options, see ASPIREDURABLETASK001.

The Aspire.Hosting.Azure.Functions package includes support for Azure Durable Task Scheduler, which provides a managed backend for Durable Functions orchestrations. Use AddDurableTaskScheduler to add a scheduler resource and AddTaskHub to associate a task hub with it.

Add a Durable Task scheduler and task hub

Call AddDurableTaskScheduler on the builder instance to add a scheduler resource, then call AddTaskHub to create a task hub and pass its reference to the Azure Functions project:

C#

C# — AppHost.cs

#pragma warning disable ASPIREDURABLETASK001

var builder = DistributedApplication.CreateBuilder(args);

var storage = builder.AddAzureStorage("storage")
    .RunAsEmulator();

var scheduler = builder.AddDurableTaskScheduler("scheduler")
    .RunAsEmulator();

var taskHub = scheduler.AddTaskHub("taskhub");

builder.AddAzureFunctionsProject<Projects.ExampleFunctions>("functions")
    .WithHostStorage(storage)
    .WithReference(taskHub);

builder.Build().Run();

#pragma warning restore ASPIREDURABLETASK001

TypeScript

TypeScript — apphost.ts

import { createBuilder } from './.modules/aspire.js';

const builder = await createBuilder();

const storage = await builder.addAzureStorage("storage");
await storage.runAsEmulator();

const scheduler = await builder.addDurableTaskScheduler("scheduler");
await scheduler.runAsEmulator();

const taskHub = await scheduler.addTaskHub("taskhub");

const functions = await builder.addAzureFunctionsProject(
    "functions",
    "../MyFunctions/MyFunctions.csproj"
);
await functions.withHostStorage(storage);
await functions.withReference(taskHub);

// After adding all resources, run the app...

In the preceding example:

• AddDurableTaskScheduler (or addDurableTaskScheduler) adds a DurableTaskSchedulerResource to the app model.
• RunAsEmulator (or runAsEmulator) configures the scheduler to use the local Durable Task emulator for development and testing.
• AddTaskHub (or addTaskHub) creates a DurableTaskHubResource associated with the scheduler.
• WithReference(taskHub) (or withReference(taskHub)) injects the task hub connection information into the Azure Functions project.

When using RunAsEmulator(), Aspire starts a local container running the DTS emulator and automatically provides:

• A Scheduler Dashboard URL on the scheduler resource.
• A Task Hub Dashboard URL on each task hub resource.
• A DTS_TASK_HUB_NAMES environment variable on the emulator container listing the associated task hub names.

Use an existing scheduler

To connect to an already-deployed Durable Task Scheduler instance instead of provisioning a new one, use RunAsExisting. The overload accepts either a plain string connection string or an IResourceBuilder<ParameterResource> for securely supplying the value at runtime:

C# — AppHost.cs

#pragma warning disable ASPIREDURABLETASK001

var builder = DistributedApplication.CreateBuilder(args);

var connectionString = builder.AddParameter("dts-connection-string", secret: true);

var scheduler = builder.AddDurableTaskScheduler("scheduler")
    .RunAsExisting(connectionString);

var taskHubNameParam = builder.AddParameter("taskhub-name");
var taskHub = scheduler.AddTaskHub("taskhub").WithTaskHubName(taskHubNameParam);

builder.AddAzureFunctionsProject<Projects.ExampleFunctions>("functions")
    .WithReference(taskHub);

builder.Build().Run();

#pragma warning restore ASPIREDURABLETASK001

Note

Durable Task Scheduler deployment support (manifest and deployment) is not yet included. Only local development with the emulator or an existing scheduler instance is currently supported.

Deployment

Deployment to Azure Container Apps (ACA) is supported using the SDK container publish function in Microsoft.Azure.Functions.Worker.Sdk. When deploying to Azure Container Apps, KEDA-based auto-scaling rules are automatically configured for your functions.

For more information, see Azure Functions and Aspire integration.

Connection properties

For the full reference of how consuming apps and Functions code read the Aspire-injected connection information, see Azure Functions runtime configuration.
